MAFR Series air filter regulator
MAFR Series air filter regulator is equivalent with MINDMAN type. the feature is light products and easy installation. It is our most mature products which sold to at least 30 countries.
¥ 0.00
MACP Series FR/L combination units
MACP Series FR/L combination units is equivalent with MINDMAN type. the feature is light products and easy installation. It is our most mature products which sold to at least 30 countries.
¥ 0.00
GFC Series FR/L air units
GFC200 series is small valve body without protect cup. GFC300 and 400 series is big valve body with protect cup. the feature is light products and easy installation. It is our most mature products which sold to at least 30 countries.
¥ 0.00
G Series FRL air units
GC200 series is small valve body without protect cup. GC300 and 400 series is big valve body with protect cup. the feature is light products and easy installation. It is our most mature products which sold to at least 30 countries.
¥ 0.00
XOFR Series air filter regulator
air filter and pressure regulator combine a single unit, and clean the compressed air of fluid oil, condensation and dirt particles.
¥ 0.00
Pressure Switch
Pressure Switch is a simple pressure control device, when the measured pressure reaches the rating value, the pressure switch may issue a warning or control signals. The working principle is as follows: When the measured pressure exceeds rated value, the free end of the elastic element will result displacement, either directly or through the comparison it will push the switch components, changing
¥ 0.00
PE tube
PNEUTEC PE TUBE is in the pneumatic system to realize the role of connectivity and transmission of pressure air. The diameter is from 2.5mm to 16mm. Delicate appearance, wide range of applications.
¥ 0.00
Nylon tube
PNEUTEC PA tube have PA6 and PA12 material, we also have tube cut, PU Sprial tube. It is in the pneumatic system to realize the role of connectivity and transmission of pressure air. The diameter is from 2.5mm to 16mm. Delicate appearance, wide range of applications.
¥ 0.00
PU tube
PNEUTEC air tubes are PU, PA (PA11 and PA12), and PE tubes. we also have tube cut, PU Sprial tube. It is in the pneumatic system to realize the role of connectivity and transmission of pressure air. The diameter is from 2.5mm to 16mm. Delicate appearance, wide range of applications.
¥ 0.00
Plastic air gun
PNEUTEC we can provide you with the full range of Air Guns & Nozzles. we have Metal air gun or plastic air gun. plastic air gun can be in blue or red.
PNEUTEC provide a comprehensive range of Air Guns & Nozzles to meet the needs for every application.
¥ 0.00
Metal air gun
PNEUTEC we can provide you with the full range of Air Guns & Nozzles. we have Metal air gun or plastic air gun.
PNEUTEC provide a comprehensive range of Air Guns & Nozzles to meet the needs for every application.
We can offer the complete range of Air Guns & Nozzles.
¥ 0.00
bronze silencer
Silencer have the different materials are divided into stainless steel Silencer, plastic Silencer, and bronze Silencer etc. It is widely used in solenoid valve or a cylinder, and other needs of clean air and reduces the noise of the occasion. Our SC,SD,SS series Silencer can be also used in controlling flow rate .The thread size is from 1/8to 1. Special sizes can be custom-designed.
¥ 0.00
quick coupler
The S/P pneumatic quick couplers are of Japan standard, PNEUTEC pneumatic has material of steel, stainless steel and zinc, of which steel quick couplers are most normal.This kind of quick couplers are of good quality with very good price, very popular most in South-east Asia market.The S/P type pneumatic quick coupler are widely used together with tubing, air gun to finish some function.
¥ 0.00
Metal one touch fitting
Metal fitting is normally brass material with nickel plated. Brass color is available. It is widely be used in high temperature and high pressure where plastic fitting is not competent. Like G thread, PT thread, inch NPT thread are optional. There are many types. For instance, straight, bulkhead, reducer, elbow, union, Long socket elbow, Branch Y, Branch T and Branch double etc.
¥ 0.00
one touch fitting
Plastic fitting is the most popular fitting. There are many types. For instance, straight, bulkhead, reducer, elbow, Long socket elbow, Branch Y, Branch T and Branch double, Different diameter triple.
Tube outer die can be metric or inch size, thread can be PT,G or NPT thread
¥ 0.00
U Series FR/L combination units
U Series FR/L combination units is equivalent with TAIWAN SHAKO type. the feature is light products and easy installation. It is our most mature products which sold to at least 30 countries.
¥ 0.00
U Series FRL combination units
U Series FRL combination units is equivalent with TAIWAN SHAKO type. the feature is light products and easy installation. It is our most mature products which sold to at least 30 countries.
¥ 0.00
XO Series air units
XO Series air units consisted of XOFR and XOL, each unit can be ordered separately. the XOF with water separator cleans the compressed air of fluid oil, condensation and dirt.
¥ 0.00
AFC BFC Series FR/L
AFC series is small valve body without protect cup. BFC series is big valve body with protect cup. The material is die-casting zinc alloy; the feature is light products and easy installation. It is our most mature products which sold to at least 30 countries.
¥ 0.00
AC BC Series FRL
AC series is small valve body without protect cup. BC series is big valve body with protect cup. The material is die-casting zinc alloy; the feature is light products and easy installation. It is our most mature products which sold to at least 30 countries.
¥ 0.00

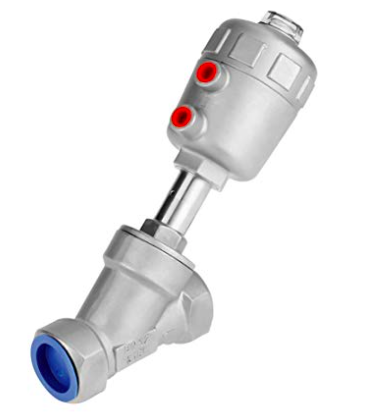

SSJZF stainless steel Angle Valve



SSJZF Series 2/2 Way stainless steel Angle Valve

Control Type: Double acting, Single acting
Size: DN10 ~ DN50 (3/8" ~ 2")
Connection: BSP or NPT threaded /Welding/Clamp
Valve Actuator Size: 40mm, 50mm, 63mm, 80mm
Valve Body Material: CF8M (AISI 316) or CF8 (AISI304)
Actuator: CF8 (AISI304)
Seat: Teflon (PTFE)

Applicable Fluid: Water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye
Fluid Pressure: Max. 1.6MPa (16 bar, 232Psi)
Fluid Temperature: -10 - +200
Max. Viscosity: 600 mm2/s
Control Fluid: Neutral gas, air
Control Pressure: 0.3 - 0.8MPa
Ambient Temperature: 0 - +80C

Product Description
Advantages:
1. Easy installation, maintenance-free, super long life;
2. Self-adjusting stem seals, reliable operation, , cylinder can be 360 rotated free;
3. Anti-corrosive, high flow rate, low fluid resistance, no water-hammer;
4. Low control air consumption. Optical position indication.



NOTICE:

Flow direction below the seat (direction A)

1.Valves with flow direction below the seat (direction A) ensure long service life.

2.Valves used for liquid media are water hammer-free.

3.Valves with orifice DN15/DN20/DN25 are ideal for the operating pressure of 0.3Mpa.

Valve with orifice DN32/DN40 are operated with double-acting actuators DN100.

Valve with orifice DN50 are operated with double-acting actuators DN125.

FLOW DIRECTION ABOVE THE SEAT (DIRECTION B)

Valves with direction B provide high sealing integrity, used for steam and gases media. There is a danger of water hammer, when the valves used for liquid media.



JZF1



JZF-2

ꄴPrevious： PTJZF plastic Angle Valve
ssjzf
넳 넲

Products

ꄲNext： Nothing
SSJZF stainless steel Angle Valve, all stainless steel body materials, SS316 and SS304 are available, single acting normally closed and double acting normally open, actuator size range from 40mm to 100mm, port size range from 3/8 to 2. Max temperature of the medium is up to 180 centi degree,  plastic Angle  is very popular with the competitive price.
